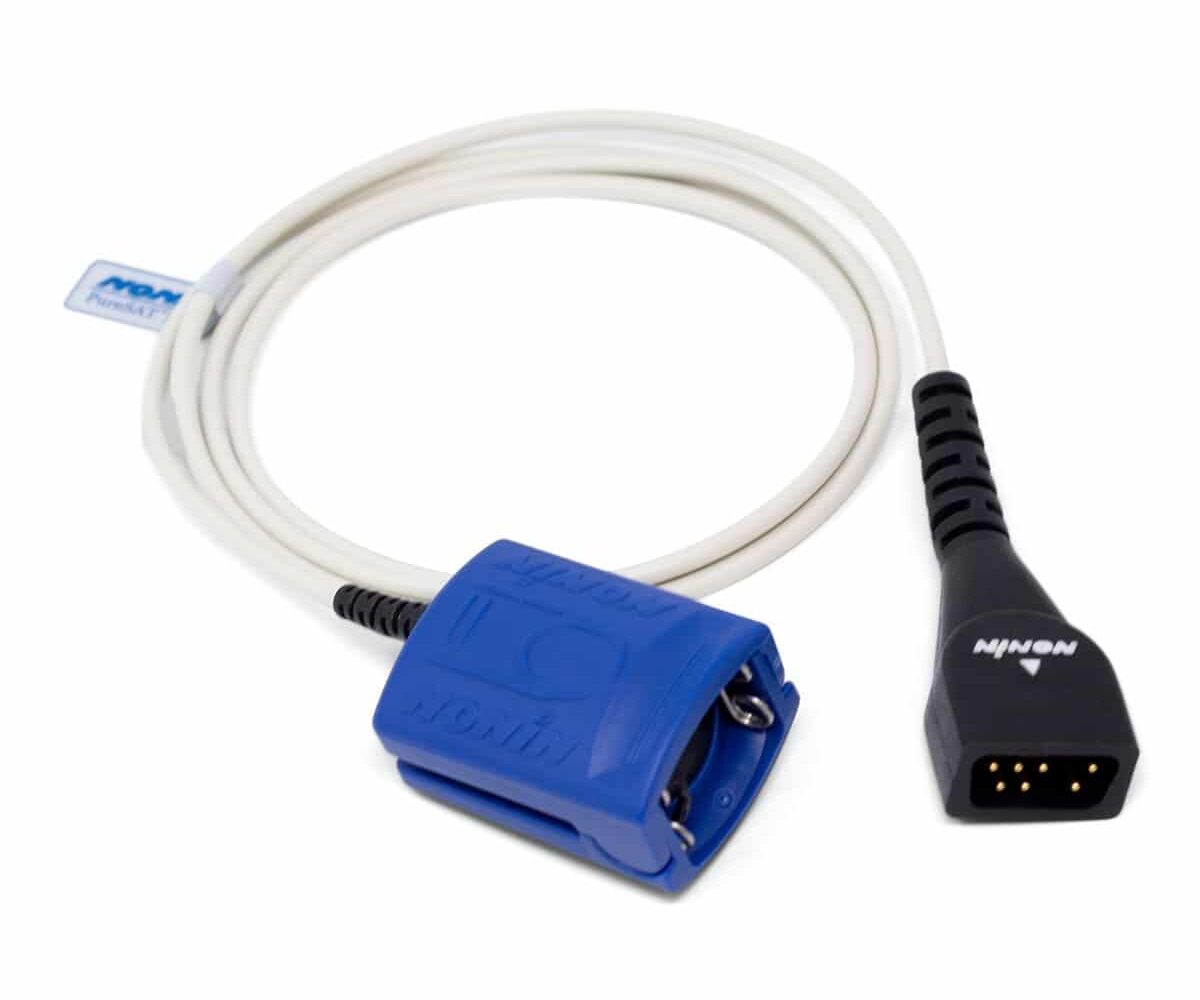

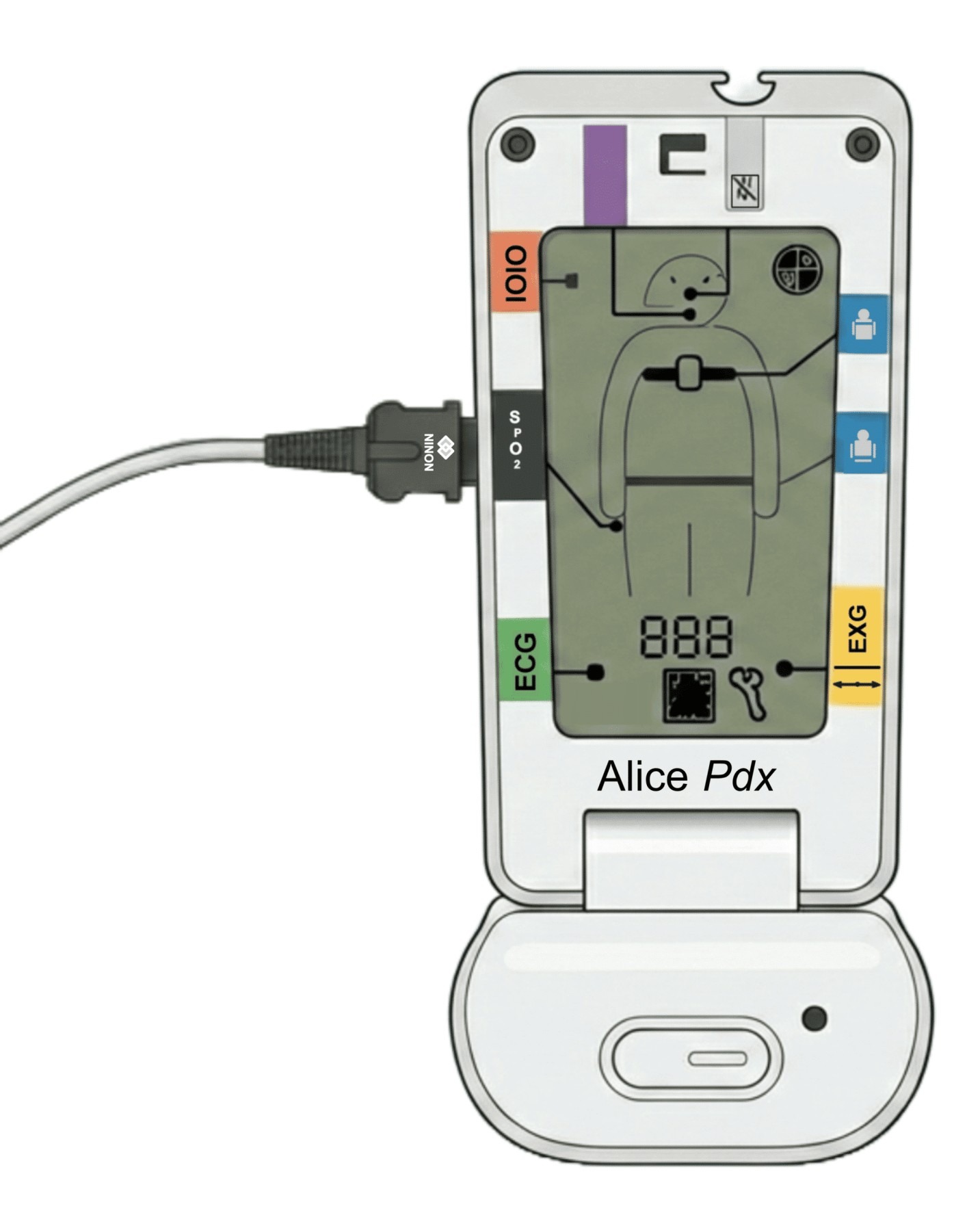

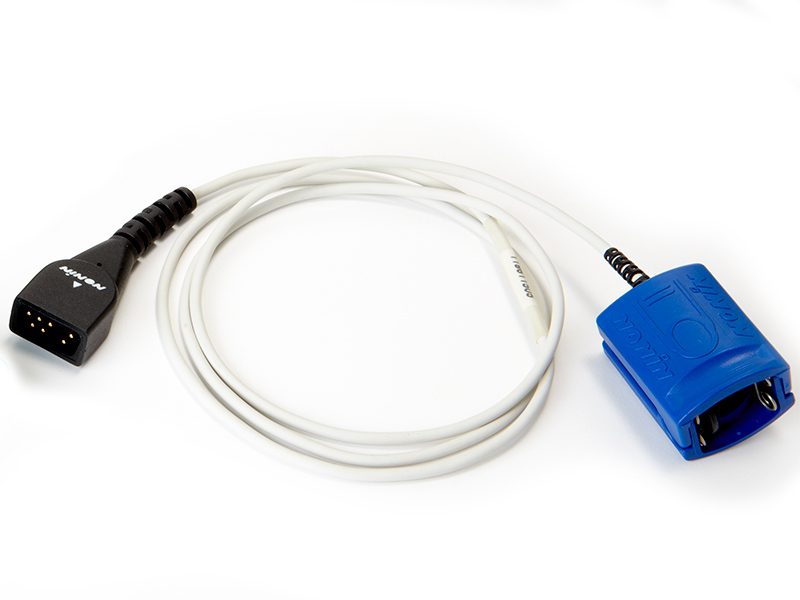

NONIN Reusable SPO2 Cable 3 Mtr For Alice PDX & Alice 6

SpO₂ Low Perfusion Accuracy: 70 to 100% ±2 digits (A_rms*)¹
Pulse Rate Accuracy: 18 to 300 BPM ±3 digits (A_rms*)¹
Pulse Rate Low Perfusion Accuracy: 40 to 240 BPM ±3 digits (A_rms*)¹
Temperature: ^{3, 4}
Operating: -20 °C to 50 °C (-4 °F to 122 °F)
Storage/Transportation: -40 °C to 70 °C (-40 °F to 158 °F)

8000AP Sensors

SpO₂ Low Perfusion Accuracy: 70 to 100% ±2 digits (A_rms*)¹
Pulse Rate Accuracy: 40 to 240 BPM ±3 digits (A_rms*)¹
Pulse Rate Motion Accuracy: 40 to 250 BPM ±5 digits (A_rms*)¹
Pulse Rate Low Perfusion Accuracy: 40 to 240 BPM ±3 digits (A_rms*)¹
Temperature: ^{3, 4}
Operating: -20 °C to 50 °C (-4 °F to 122 °F)
Storage/Transportation: -40 °C to 70 °C (-40 °F to 158 °F)

Humidity: ^{3, 4}
Operating: 10% to 95% non-condensing
Storage/Transportation: 10% to 95% non-condensing

* ±1 A_rms encompasses 68% of the population at zero bias.
¹ Additional accuracy and performance information can be found in the sensor accuracy document on the operator’s manual CD.
² Accuracy specifications based on Nonin’s PureSAT^® SpO₂ technology and PureLight^® sensor technology.
³ For combined oximeter/sensor specifications, refer to the applicable oximetry system’s operator’s manual.
⁴ Range as tested with Nonin’s PureSAT SpO₂ technology.

Measurement Wavelengths and Output Power**:
Red: 660 nanometers @ 3 mW nominal
Infrared: 910 nanometers @ 3 mW nominal
** This information is especially useful for clinicians performing photodynamic therapy.

Compliance
This product complies with ISO 10993.
Not made from natural rubber latex.
